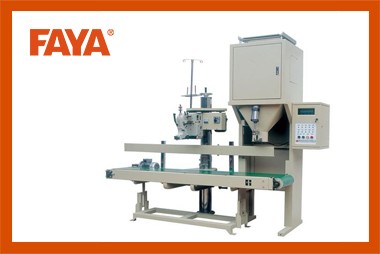

Chemical powder packing machine

Product Description: mainly by the import of materials, material feeding mechanism (gate), weighing hopper, bag clamping mechanism, rack, air suction, pneumatic systems, sensors, control boxes, conveyor and sewing machine, etc.
Online ordering

Application range:
Grain (flour), feed, food additives, chemical industry and other industries of quantitative packaging powder materials.
Screw (auger) feed with pneumatic gate to complete rapid and accurate measurement.
1 adopt imported frequency converter, control instrument, sensor, pneumatic actuator.
2 automatic error correction, super error alarm, fault diagnosis.
The 3 wind design, advanced small dust.
4 in the packaging or above with the unloading of the real structure, can be matched with a new type of conveyor sewing machine.
5 set aside the printer interface, can print the number of packs, the total weight of production data. Reserved RS232 serial port, can communicate with foreign management system for data
Technical parameter:
Rated pack weight 1-40kg kg
Index value 5g
Packaging precision 0.1%f.s
Packaging speed package / hour 310
Power consumption AC380V three-phase four wire 1.2KW compressed air 1m3/h 0.4-0.8Mpa
Structure of powder packing machine:
The utility system is mainly composed of a material inlet, a feeding mechanism (gate), a weighing hopper, a clamping bag mechanism, a machine frame, an air suction inlet, a pneumatic system, a sensor, a control box, a conveying and a sewing machine.
