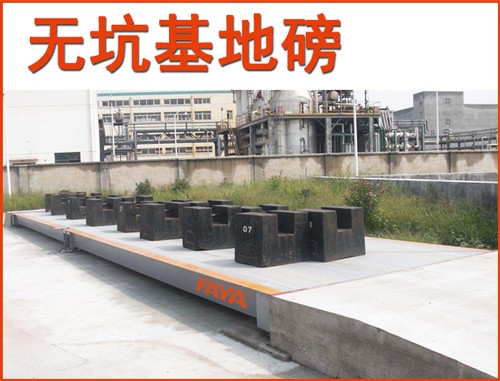

Pit-free floor scale

More customized product advice & product pricing 【Line】: Mr. Li - 13823166698

☆ Features (digital electronic truck scale as an example):
First, digital conversion technology and compensation:
Weighing sensor inside contains analog-digital conversion and CPU processing unit;
Using digital technology to achieve sensor nonlinearity, temperature performance parameters of the automatic compensation;
The advantages of the sensor after the replacement of correction-free;
Second, the calibration technology, digital technology so that the truck side of the eccentric load (four corners) correction one-time automatic completion;
Third, digital communication technology:
Bus structure to facilitate the application of multiple sensors, in the same system can be connected up to 32 load cells;
Using RS485 interface, to achieve long-distance signal transmission, transmission distance of not less than 1000 meters;
Output signal up to 3 ~ 4V, greatly improving the anti-jamming capability, while improving the system's anti-lightning ability;
Fourth, intelligent technology:
Can change the sensor characteristic parameter according to the instruction;
According to different application environments using different filtering methods;
To prevent the use of simple circuit to change the size of the signal;
Fifth, the modular, systematic pound Taiwan, multi-unit portfolio;
Sixth, the digital stainless steel laser welding sealed sensor, accuracy grade C3, waterproof anti-corrosion ability;
7, computer control, the entire Chinese user interface, intuitive, powerful.
☆ Technical parameters:
Accuracy class: OIML III;
Weighing range: 10 ~ 150t;
Pound combination length: 6 ~ 24m;
Pound width: 3 ~ 3.4m;
Safety overload: 130% Max;
Analog signal transmission distance: 100m;
Digital signal maximum transmission distance: 1000m;
Working power: voltage 220VAC, frequency 50HZ;
Relative humidity: <95%;
Operating temperature: Instrument -10 ~ +40 ℃.
